Magnetic Separator

Magnetic Separator

Processing ability: 1–220 t/h

Feeding size: 3–0 mm

Shell diameter: 600–1500 mm

Applied material: magnetite, pyrrhotite, roasted ore, ilmenite, limonite, etc

  • Roasted Ore
  • Pyrrhotite
  • Magnetite
  • Limonite
  • Ilmenite

Introduction:

Magnetic separator is also called magnetic drum separator. It is a kind of indispensable ore dressing equipment in magnetic separation production line, which is suitable for the removal of iron in the reused powder materials. Magnetic separator is mainly composed of four parts: cylinder, magnetic system, tank body and transmission part, which is widely used in resource recovery industry, wood industry, mining industry, ceramics industry, chemical industry, food and other workshops. Magnetic separator is suitable for the wet magnetic separation of magnetite, pyrrhotite, roasted ore, ilmenite and other materials with below 3mm particle size, which is also used for iron removal of coal, non-metallic minerals, building materials and other materials. It is one of the most widely used high versatility equipment in aircraft industry.

Magnetic Separator

Classification:

Magnetic separator can be divided into dry magnetic separator and wet magnetic separator. Magnetic separator has wide applications in the production of industrial plant, and magnetic separator is also in continuous improvement with development of science and technology. The improvement of magnetic separating technology has a direct relationship with the industrial plant, so the structure transformation of the magnetic separator equipment becomes necessary.

Features:

1. Simple structure, large processing quantity.

2. Convenient operation, easy maintenance.

3. It adopts high-quality ferrite material and rare earth permanent magnet, the average magnetic induction intensity of drum surface is 100 ~ 600mT, strong magnetic separation ability.

4. The working area of the chute is manufactured of stainless steel. The frame and other parts of chute body are welding with ordinary steel.

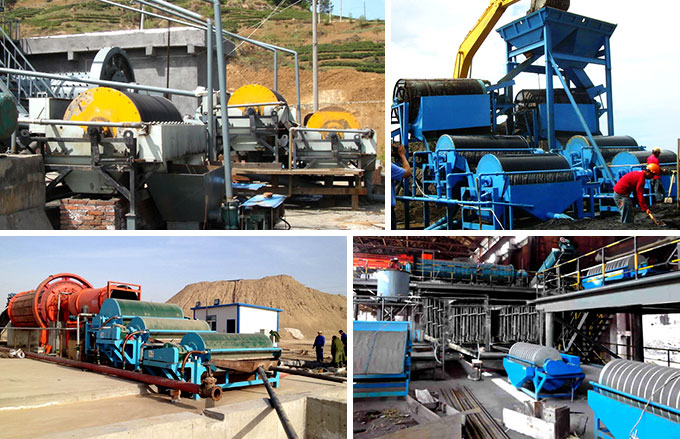

Magnetic Separator Production Site

Hongxing Machinery is a professional magnetic separator manufacturer in China. The magnetic separator price of Hongxing Machinery is reasonable. If you want to know more details, please contact our online customer service or leave us a message. We will answer you with great patience!

Magnetic Separator Technical Data

Model Shell diameter
(mm)
Shell lenght
(mm)
Shell rotation
speed(r/min)
Feeding size
(mm)
Processing capacoty
(t/h)
Power(kw)
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
CTB1530 1500 3000 <14 3-0 170-280 11
Model Feeding size
(mm)
Processing capacity
(t/h)
CTB6012 2-0 10-20
CTB6018 2-0 15-30
CTB7518 2-0 20-45
CTB9018 3-0 40-60
CTB9021 3-0 45-60
CTB9024 3-0 45-70
CTB1018 3-0 50-75
CTB1021 3-0 50-100
CTB1024 3-0 60-120
CTB1218 3-0 80-140
CTB1224 3-0 85-180
CTB1230 3-0 100-180
CTB1530 3-0 170-280
