Dry Process Cement Rotary Kiln

Dry Process Cement Rotary Kiln

Feeding Granularity: Φ2.5×40m-Φ6.0×95m

Production Capacity: 180-10000t/d

Application Range: Calcining cement clinker

  • Cement Clinker
  • Cement

Dry Process Cement Rotary Kiln Features:

Dry raw powder is directly put into the kiln for calcination, the water content is generally only 1%~2%, which saves a large amount of heat required for drying raw materials. Now the dry production can completely prepare the uniform raw material, the new type of pre decomposition kiln has the raw material powder preheating and decomposition of carbonates are moved to the outside kiln in the suspended state with high thermal efficiency, which can reduce the load of rotary kiln. The heat efficiency of rotary kiln is improved from the 30% to more than 60%, and it also expands the production capacity of the kiln.

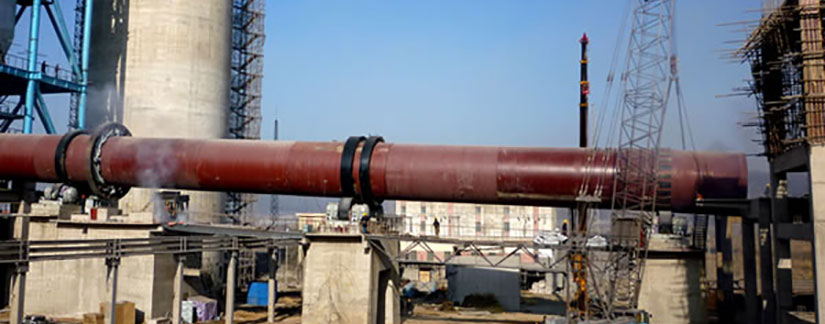

Dry Process Cement Rotary Kiln

The main advantages of dry process cement rotary kiln include strong adaptability to non homogeneous materials, stable calcining process, high product quality, reasonable strength grade, less ash during the calcination process of materials, less energy consumption.

Dry Process Cement Rotary Kiln

Dry process cement rotary kiln produced by our company has firm structure, stable operation, stable performance, convenient operation, high operating efficiency, stable thermal regulation and high-quality finished products. When compared with the original similar equipment, the operating rate has been increased by 10%, the yield is increased by 5%-10% and the heat consumption is reduced by 15%.

Dry Process Cement Rotary Kiln Technical Data

Product specifications(m) Kiln dimensions Capacity(t/d) Rotation speed(r/min) Motor power(kw) Total weight(t) Note
Diameter(m) Length(m) Obliquity(%)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61 Kiln with shaft cyclone preheater
Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 ----
Φ2.5×54 2.5 54 3.5 204 0.48-1.45 55 196.29 ----
Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ----
Φ2.8×44 2.8 44 3.5 400 0.437-2.18 55 201.58 Outside disassemble kiln
Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ----
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237 Outside disassemble kiln
Φ3.0×60 3 60 3.5 300 0.3-2 100 310 Alumyte-alumina forge kiln
Φ3.2×50 3.2 50 4 1000 0.6-3 125 278 Outside disassemble kiln
Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283 Kiln with preheater precalcine
Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363 Kiln with preheater precalcine
Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419 Generating kiln for using ofterheat
Φ4.0×56 4 56 4 2300 0.41-4.07 315 456 Kiln with preheater precalcine
Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510 Kiln with preheater precalcine
Φ4.2×60 4.2 60 4 2750 0.4-3.98 375 633 Kiln with preheater precalcine
Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583 Kiln with preheater precalcine
Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4 Kiln with preheater precalcine
Φ4.7×74 4.7 74 4 4500 0.35-4 630 849 Kiln with preheater precalcine
Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899 Kiln with preheater precalcine
Φ5.0×74 5 74 4 6000 0.35-4 710 944 Kiln with preheater precalcine
Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265 Kiln with preheater precalcine
Φ6.0×95 6 95 4 10000 Max5 950×2 1659 Kiln with preheater precalcine
Product
specifications(m)
Capacity
(t/d)
Rotation
speed(r/min)
Φ2.5×40 180 0.44-2.44
Φ2.5×50 200 0.62-1.86
Φ2.5×54 204 0.48-1.45
Φ2.7×42 320 0.10-1.52
Φ2.8×44 400 0.437-2.18
Φ3.0×45 500 0.5-2.47
Φ3.0×48 700 0.6-3.48
Φ3.0×60 300 0.3-2
Φ3.2×50 1000 0.6-3
Φ3.3×52 1300 0.266-2.66
Φ3.5×54 1500 0.55-3.4
Φ3.6×70 1800 0.25-1.25
Φ4.0×56 2300 0.41-4.07
Φ4.0×60 2500 0.396-3.96
Φ4.2×60 2750 0.4-3.98
Φ4.3×60 3200 0.396-3.96
Φ4.5×66 4000 0.41-4.1
Φ4.7×74 4500 0.35-4
Φ4.8×74 5000 0.396-3.96
Φ5.0×74 6000 0.35-4
Φ5.6×87 8000 Max4.23
Φ6.0×95 10000 Max5
