China Ball Mill

China Ball Mill

Production capacity: 0.5-500t/h

Feeding size: ≤25mm

Material handling: cement, silicate, fertilizer, ferrous metal and non-ferrous metal, glass ceramics, etc.

  • Pyrrhotite
  • Limonite
  • Molybdenum Ore
  • Iron Ore
  • Copper Ore

If you are interested in our products, Click Here for the Latest Discount

Introduction:

19th Century, the widely used ball mill appeared. In 1870, on the basis of ball mill, the rod mill with uniform discharge granularity had been developed. In 1908, the self grinding ball mill without grinding medium is was developed. In 1930~1950s, the United States and Germany had developed a roller bowl coal mill, roll mill and the vertical shaft medium speed coal mill. As the essential part of ore dressing equipment in mining industry, the development of ball mill is more and more quickly.

China Ball Mill Materials and products

As the traditional ball mill grinding equipment, China ball mill also has a history of over 100 years. It is the important equipment to grind solid materials into powder, which is widely used in metallurgy, chemical industry, cement, ceramics, construction, electricity, medicine, national defense industry and other departments. Especially the ore dressing sector in the metallurgical industry, grinding operation occupies a very important position.

China Ball Mill

Due to the grain size and grinding ability have significant influence on the subsequent operation efficiency and the technical economic indexes of whole production process of ball mill, so the research on ball mill has been paid attention at home and abroad. We will continue to devote a lot of scientific research strength to develop more China ball mill product in line with the needs of customers, and ball mill will develop faster and better.

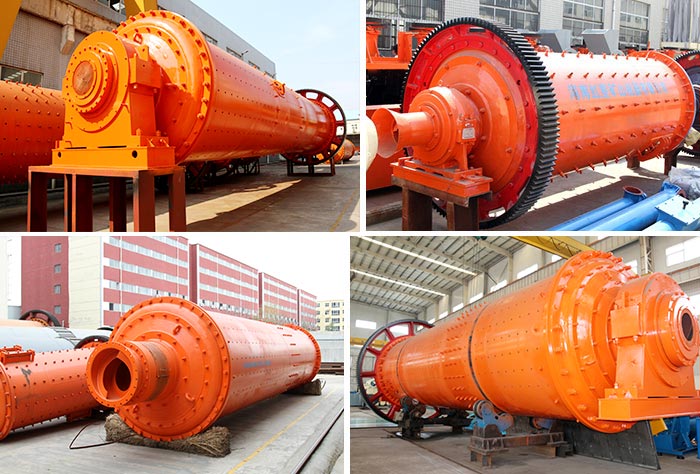

China Ball Mill Work Site

China Ball Mill Technical Data

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 ≤25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 ≤25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 ≤25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 ≤25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 ≤25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 ≤25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 ≤25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 ≤25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 ≤25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 ≤25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 ≤25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 ≤25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 ≤25 0.074-0.4 148-615 4500 525
