Stone Jaw Crusher

Stone Jaw Crusher

Processing capacity: 1-2200t/h

Feed opening: 150×250-300×1300mm

Feeding size: 125-250mm

Applied material: limestone, marble, river gravel, fly ash, coal powder, slag, clay.

  • Marble
  • River Gravel
  • Coal
  • Limestone
  • Fly Ash

If you are interested in our products, Click Here for the Latest Discount

Introduction:

Stone jaw crusher is composed of a box body, a rotor, hammer, impact plate, screening plate, etc. It is applied in the medium and fine crushing of medium hard materials such as limestone, slag, coke, coal and other materials in cement, chemical industry, electric power, metallurgy and other industrial sectors. Stone jaw crusher is used for crushing all kinds of hard and abrasive materials with not more than 100MPa compressive strength and less than 15%water content.

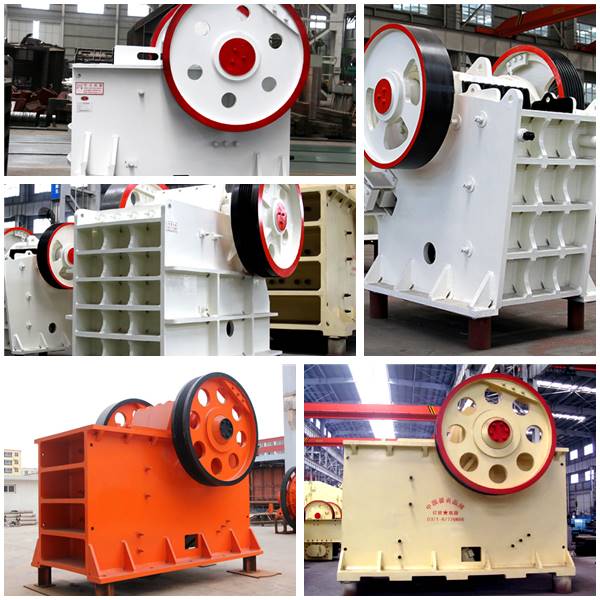

Stone Jaw Crusher

It has large crushing ratio, high production ability, low energy consumption of per unit, simple structure, light weight, easy maintenance, etc.

Features:

1. Its hammer head uses new casting technology, which has strong wear and impact resistance.

2. It can be adjusted to the required granularity according to the requirements of customers.

3. The sealing structure solves the problems of ash leakage and dust pollution in the workshop.

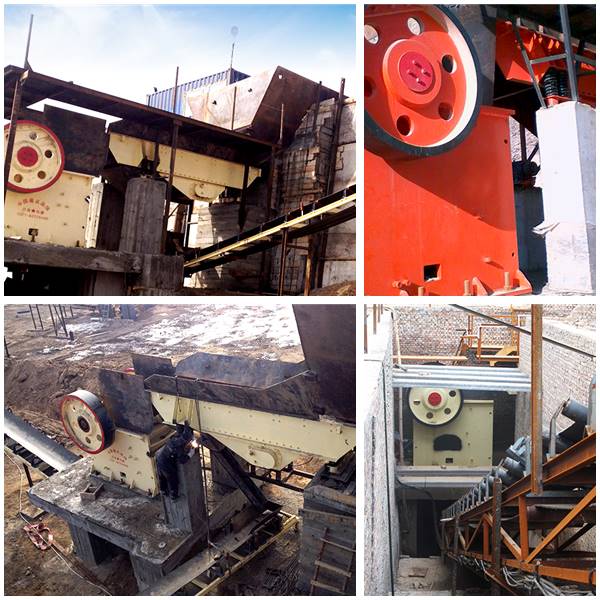

Stone Jaw Crusher Work Site

4. Beautiful overall design, compact structure, less wearing parts, convenient maintenance, which is the upgrading product.

Stone Jaw Crusher Technical Data

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
